FREE software tool designed to simplify the development of Radio Frequency and Microwave circuits. It turns complex calculations into practical, implementable solutions, helping engineers save time and reduce design errors.

The software includes three main modules:

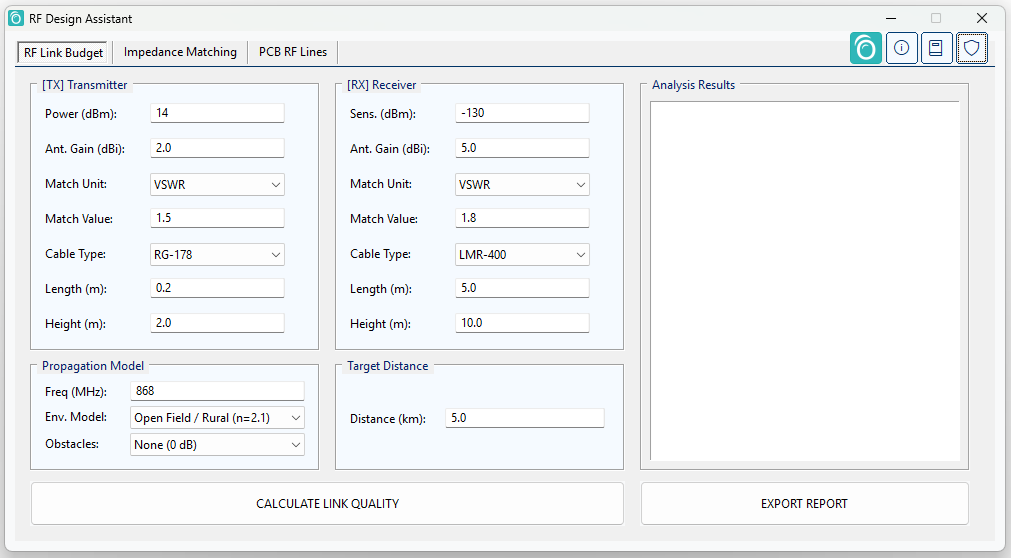

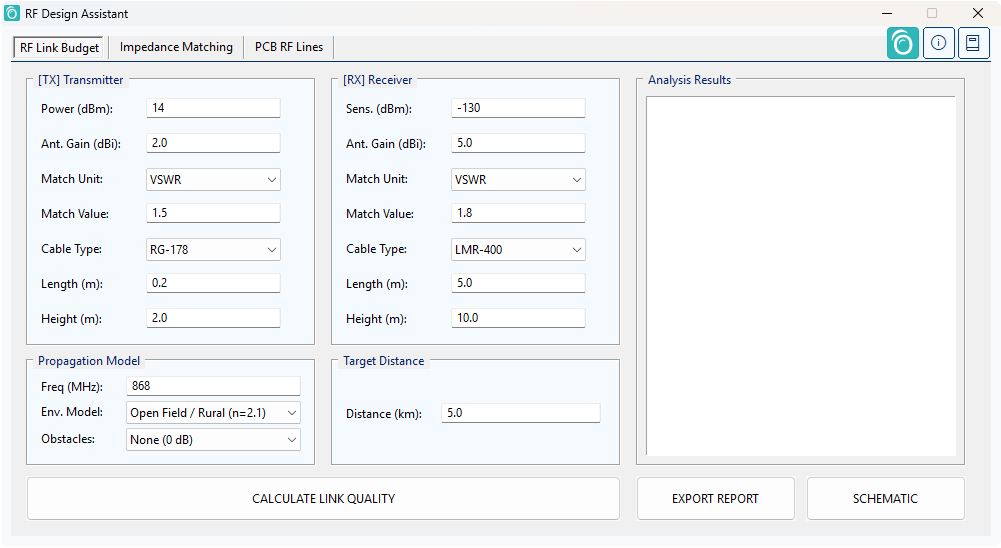

• Link Budget: Evaluate the performance of a transmitter/receiver system and verify whether a desired communication distance can be achieved.
•  Impedance Matching: Design networks that match a complex source impedance to a complex load impedance for optimal power transfer.
•  PCB RF Lines: Calculate the dimensions and characteristic impedance of planar RF transmission lines such as Microstrip, Stripline, Coplanar Waveguide, and Grounded Coplanar Waveguide.
