RF DESIGN ASSISTANT V1.1.0
FREE software tool designed to simplify the development of Radio Frequency and Microwave circuits and systems. It turns complex calculations into practical, implementable solutions, helping engineers save time and reduce errors through an intuitive, visual interface
The software includes several modules, each providing analytical results with graphical representations.
Free Download - Ver 1.1.0
Continue...
×
Before download...
Almost there! Please help us stop bots and enjoy useful RF updates.

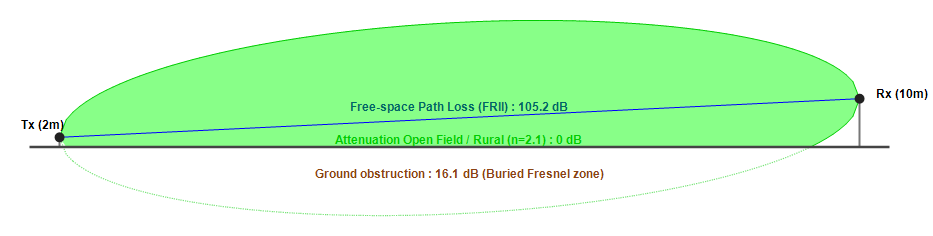

- Link Budget (System Block Diagram): Evaluate the performance of a transmitter/receiver system and verify whether a desired communication distance can be achieved.

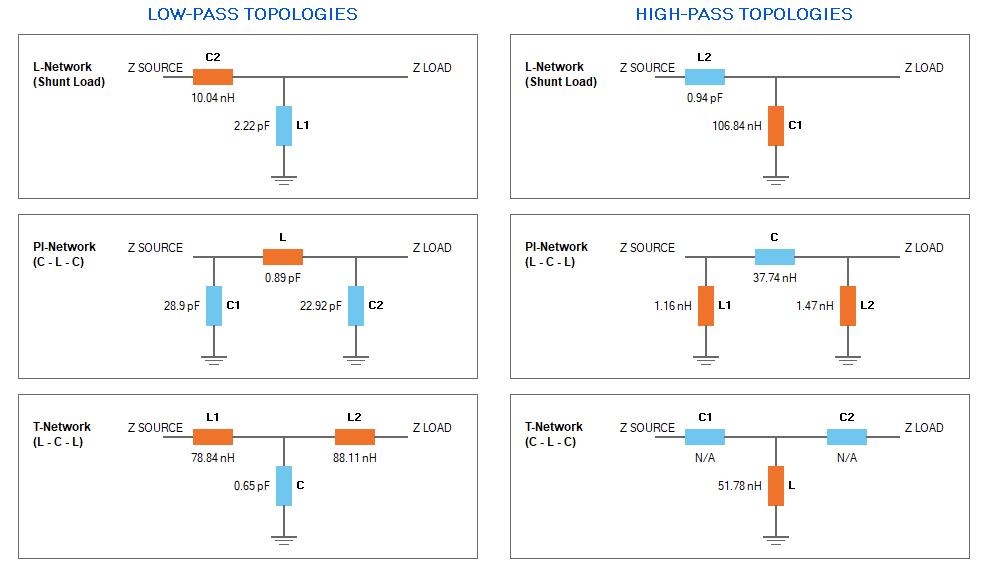

- Impedance Matching (Circuit Schematic): Design networks that match a complex source impedance to a complex load impedance for optimal power transfer.

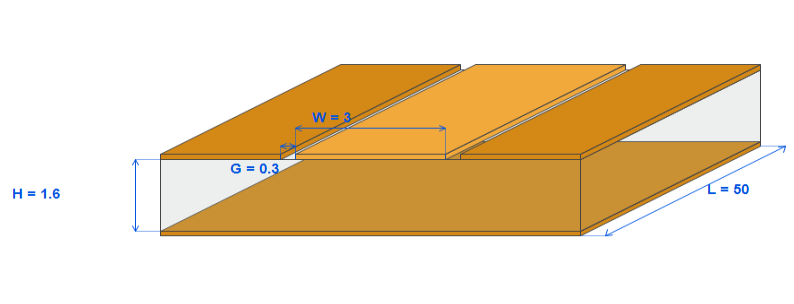

- PCB RF Lines (Transmission Line Cross-Section): Calculate the dimensions and characteristic impedance of planar RF transmission lines such as Microstrip, Stripline, Coplanar Waveguide, and Grounded Coplanar Waveguide.
